Example usage
%matplotlib inline
from structurefunction import structure_function
import numpy as np
from astropy.table import Table
from astropy.coordinates import SkyCoord
from tqdm.auto import tqdm
import matplotlib.pyplot as plt
import astropy.units as u
import os
import shutil
The second-order structure function of rotation measure (RM) is given by:
\[SF_{\text{RM},\text{obs}}(\delta\theta) = \langle[\text{RM}{\theta} - \text{RM}(\theta+\delta\theta)]^2\rangle\]
That is, the ensemble average of the squared-difference in RM for sources with angular seperation \(\delta\theta\). We also need to correct for the impact of errors by:
\[SF_{\text{RM}}(\delta\theta) = SF_{\text{RM},\text{obs}}(\delta\theta) - SF_{\sigma_\text{RM}}(\delta\theta)\]
See Haverkorn et al. 2004 (2004ApJ…609..776H) for details.
Here we’ll reproduce the results of Mao et al. 2010 (2010ApJ…714.1170M).
First, we can look at the expected results. I’ve pulled these data from the paper’s plots using a web plot digitiser.
mao_sf = 10**np.array([2.417894195735458,
2.097768739428083,
2.2926445508823967,
2.164149088774578,
2.1404402085381147,
2.176621779798478,
2.218782670913379,
2.2444782900152482,
2.2476963207124476,
2.2837806390213578,]) * (u.rad / u.m**2)**2
mao_sep = 10**np.array([-0.7729091483767441,
-0.5386163683663935,
-0.2730532911440767,
-0.02550632317850443,
0.21819567988496358,
0.47213008276920787,
0.7173429798998987,
0.9643533199726302,
1.18882007856649,
1.3453070240944185,]) * u.deg
plt.figure(figsize=(6,6))
plt.plot(mao_sep, mao_sf, 'X', label='Paper SF')
plt.xscale('log')
plt.yscale('log')
plt.ylim(10**1.5, 10**3)
plt.xlim(10**-1,10**1.5)
plt.legend()
plt.xlabel(rf"$\Delta\theta$ [{mao_sep.unit:latex_inline}]")
plt.ylabel(rf"RM SF [{mao_sf.unit:latex_inline}]")
Text(0, 0.5, 'RM SF [$\mathrm{rad^{2}\,m^{-4}}$]')
Now we’ll start with the original data. We’ll convert the data to an astropy table for convenience
with open('apj343194t1_mrt.txt') as f:
lines = f.readlines()
for i, line in enumerate(tqdm(lines)):
lines[i] = line.strip()
coords, rms, e_rms, flags, incs = [], [], [], [], []
for i, line in enumerate(tqdm(lines)):
ra = f"{line[0:2]}h{line[3:5]}m{line[6:11]}s"
#print(ra)
dec = f"{line[12]}{line[13:15]}d{line[16:18]}m{line[19:24]}s"
coord = SkyCoord(ra, dec)
rm = float(line[39:42]) * (u.rad / u.m**2)
e_rm = float(line[43:45]) * (u.rad / u.m**2)
inc = line[63] == 'Y'
incs.append(inc)
try:
flag = line[67]
except:
flag = None
coords.append(coord)
rms.append(rm)
e_rms.append(e_rm)
flags.append(flag)
mao_rm_tab = Table()
mao_rm_tab.add_column(coords, name='coordinates')
mao_rm_tab.add_column(rms, name='RM')
mao_rm_tab.add_column(e_rms, name='e_RM')
mao_rm_tab.add_column(incs, name='included')
mao_rm_tab.add_column(flags, name='flag')
mao_rm_tab
0%| | 0/472 [00:00<?, ?it/s]
0%| | 0/472 [00:00<?, ?it/s]
Table length=472
| coordinates | RM | e_RM | included | flag |
|---|---|---|---|---|
| deg,deg | rad / m2 | rad / m2 | ||
| SkyCoord | float64 | float64 | bool | object |
| 196.78470833333333,24.78352777777778 | -3.0 | 4.0 | True | None |
| 203.9505833333333,20.171111111111113 | 3.0 | 5.0 | False | b |
| 201.06033333333332,22.220305555555555 | -6.0 | 6.0 | True | None |
| 201.07991666666663,22.233472222222222 | 0.0 | 6.0 | True | None |
| 199.01816666666664,23.62713888888889 | 4.0 | 13.0 | True | None |
| 200.20225,22.965194444444442 | -6.0 | 8.0 | True | None |
| 197.81804166666666,24.454333333333334 | 5.0 | 3.0 | True | None |
| 203.60637499999996,21.167916666666667 | -1.0 | 9.0 | False | b |
| 196.91187499999998,25.055555555555557 | -6.0 | 4.0 | True | None |
| ... | ... | ... | ... | ... |
| 193.52904166666664,26.502466666666667 | -5.0 | 2.0 | False | a |
| 197.22479166666665,22.97161111111111 | 4.0 | 5.0 | True | None |
| 196.72154166666664,23.542472222222223 | -2.0 | 10.0 | True | None |
| 199.7889583333333,20.89011111111111 | 1.0 | 6.0 | True | None |
| 201.55124999999998,19.40825 | 2.0 | 11.0 | False | b |
| 196.7925833333333,24.129166666666666 | 0.0 | 3.0 | True | None |
| 199.27962499999998,22.589416666666665 | -20.0 | 14.0 | True | None |
| 200.54762499999998,21.80338888888889 | 12.0 | 6.0 | True | None |
| 200.29674999999997,22.269972222222222 | -1.0 | 4.0 | True | None |
| 199.57758333333334,22.871305555555555 | 8.0 | 4.0 | True | None |
Now we’ll define our own bin edges to compute a structure function
start = -0.8
stop = 1.5
step = 0.1
bins = 10**np.arange(start, stop+step, step)*u.deg
Here we compute the strcture function itself, including error correction. We use 1000 samples of each distribution for error propagation.
By setting show_plots=True three plots are shown. 1. An error-bar
plot of the SF. 2. A count of the number of source pairs per SF bin 3. A
structure function image showing the sampling from Monte-Carlo error
propagation
The structure_function function returns the centre of each bin, the
median value of each bin, the upper and lower error bounds, and the
number of sources in each bin.
By setting fit we use bilby to do a best-fit of the SF with a
broken power law. Here we’re using nestle to do the sampling. All
**kwargs are passed onto the run_sampler method of bilby.
# Clean up if a previous run was done
if os.path.exists("outdir"):
shutil.rmtree("outdir")
sf_result, result = structure_function(
data=np.array(mao_rm_tab['RM'][mao_rm_tab['included']]) * u.rad / u.m**2,
errors=np.array(mao_rm_tab['e_RM'][mao_rm_tab['included']]) * u.rad / u.m**2,
coords=mao_rm_tab['coordinates'][mao_rm_tab['included']],
samples=1000,
bins=bins,
show_plots=True,
verbose=True,
fit='bilby',
nlive=400,
sampler='nestle',
model_name='broken_power_law',
)
2022-11-07 14:03:13.640 INFO structurefunction - structure_function: Sampling errors...
2022-11-07 14:03:17.396 INFO structurefunction - structure_function: Getting angular separations...
2022-11-07 14:03:17.434 INFO structurefunction - structure_function: Computing SF...
2022-11-07 14:03:31.302 INFO structurefunction - fit_data: Fitting SF with a broken power law...
14:03 bilby INFO : Running for label 'broken_power_law_2_point', output will be saved to 'outdir'
14:03 bilby INFO : Search parameters:
14:03 bilby INFO : amplitude = Uniform(minimum=-55.43796027883391, maximum=471.5431939956728, name='amplitude', latex_label='$a$', unit=None, boundary=None)
14:03 bilby INFO : x_break = Uniform(minimum=0.179, maximum=28.371000000000002, name='x_break', latex_label='$\theta_\mathrm{break}$', unit=None, boundary=None)
14:03 bilby INFO : alpha_1 = Uniform(minimum=-2, maximum=2, name='alpha_1', latex_label='$\alpha_1$', unit=None, boundary=None)
14:03 bilby INFO : alpha_2 = Uniform(minimum=-2, maximum=2, name='alpha_2', latex_label='$\alpha_2$', unit=None, boundary=None)
14:03 bilby INFO : Single likelihood evaluation took 1.555e-04 s
14:03 bilby WARNING : Supplied argument 'npool' not an argument of 'Nestle', removing.
14:03 bilby WARNING : Supplied argument 'sample' not an argument of 'Nestle', removing.
14:03 bilby INFO : Using sampler Nestle with kwargs {'method': 'multi', 'npoints': 400, 'update_interval': None, 'npdim': None, 'maxiter': None, 'maxcall': None, 'dlogz': None, 'decline_factor': None, 'rstate': None, 'callback': <function print_progress at 0x1b2e72550>, 'steps': 20, 'enlarge': 1.2}
[Kit= 3592 logz=-114.816709542922
14:03 bilby INFO : Sampling time: 0:00:27.098431
14:03 bilby INFO : Summary of results:
nsamples: 3993
ln_noise_evidence: nan
ln_evidence: -114.499 +/- 0.130
ln_bayes_factor: nan +/- 0.130
2022-11-07 14:04:01.465 INFO structurefunction - fit_data: Fitting results:
2022-11-07 14:04:01.467 INFO structurefunction - fit_data: amplitude: 180 ± 10
2022-11-07 14:04:01.468 INFO structurefunction - fit_data: x_break: 22 ± 4
2022-11-07 14:04:01.469 INFO structurefunction - fit_data: alpha_1: 0.11 ± 0.04
2022-11-07 14:04:01.470 INFO structurefunction - fit_data: alpha_2: 0 ± 1
2022-11-07 14:04:01.471 INFO structurefunction - fit_data: Fit log evidence: -114.49868298129567 ± 0.12984044020094218

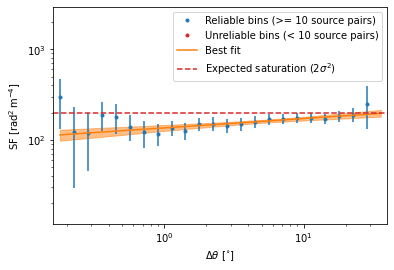

sf_result, result = structure_function(
data=np.array(mao_rm_tab['RM'][mao_rm_tab['included']]) * u.rad / u.m**2,
errors=np.array(mao_rm_tab['e_RM'][mao_rm_tab['included']]) * u.rad / u.m**2,
coords=mao_rm_tab['coordinates'][mao_rm_tab['included']],
samples=1000,
bins=bins,
show_plots=True,
verbose=True,
fit='bilby',
nlive=400,
sampler='nestle',
model_name='power_law',
)
2022-11-07 14:04:07.099 INFO structurefunction - structure_function: Sampling errors...
2022-11-07 14:04:09.998 INFO structurefunction - structure_function: Getting angular separations...
2022-11-07 14:04:10.063 INFO structurefunction - structure_function: Computing SF...
2022-11-07 14:04:32.609 INFO structurefunction - fit_data: Fitting SF with a power law...
14:04 bilby INFO : Running for label 'power_law_2_point', output will be saved to 'outdir'
14:04 bilby INFO : Search parameters:
14:04 bilby INFO : amplitude = Uniform(minimum=-52.035011894175796, maximum=464.9494929780924, name='amplitude', latex_label='$a$', unit=None, boundary=None)
14:04 bilby INFO : x_break = Uniform(minimum=0.179, maximum=28.371000000000002, name='x_break', latex_label='$\theta_\mathrm{break}$', unit=None, boundary=None)
14:04 bilby INFO : alpha = Uniform(minimum=-2, maximum=2, name='alpha', latex_label='$\alpha$', unit=None, boundary=None)
14:04 bilby INFO : Single likelihood evaluation took 1.576e-04 s
14:04 bilby WARNING : Supplied argument 'npool' not an argument of 'Nestle', removing.
14:04 bilby WARNING : Supplied argument 'sample' not an argument of 'Nestle', removing.
14:04 bilby INFO : Using sampler Nestle with kwargs {'method': 'multi', 'npoints': 400, 'update_interval': None, 'npdim': None, 'maxiter': None, 'maxcall': None, 'dlogz': None, 'decline_factor': None, 'rstate': None, 'callback': <function print_progress at 0x1b2e72550>, 'steps': 20, 'enlarge': 1.2}
[Kit= 3219 logz=-114.1911086409369
14:04 bilby INFO : Sampling time: 0:00:13.769841
14:04 bilby INFO : Summary of results:
nsamples: 3620
ln_noise_evidence: nan
ln_evidence: -113.771 +/- 0.124
ln_bayes_factor: nan +/- 0.124
2022-11-07 14:04:47.401 INFO structurefunction - fit_data: Fitting results:
2022-11-07 14:04:47.402 INFO structurefunction - fit_data: amplitude: 180 ± 20
2022-11-07 14:04:47.403 INFO structurefunction - fit_data: x_break: 15 ± 9
2022-11-07 14:04:47.404 INFO structurefunction - fit_data: alpha: 0.10 ± 0.04
2022-11-07 14:04:47.406 INFO structurefunction - fit_data: Fit log evidence: -113.77116114103981 ± 0.1240670676073616
We can compare our results to those from the original paper.
plt.figure(figsize=(6,6), facecolor='w')
plt.plot(sf_result.c_bins, sf_result.med, '.', label='Median from MC')
plt.errorbar(sf_result.c_bins, sf_result.med, yerr=[sf_result.err_low, sf_result.err_high], color='tab:blue', marker=None, fmt=' ', )#label = '16th to 84th percentile range')
plt.plot(mao_sep, mao_sf, 'X', label='Paper SF')
plt.xscale('log')
plt.yscale('log')
plt.ylim(10**1.5, 10**3)
plt.xlim(10**-1,10**1.5)
plt.legend()
plt.xlabel(rf"$\Delta\theta$ [{mao_sep.unit:latex_inline}]")
plt.ylabel(rf"RM SF [{mao_sf.unit:latex_inline}]")
Text(0, 0.5, 'RM SF [$\mathrm{rad^{2}\,m^{-4}}$]')

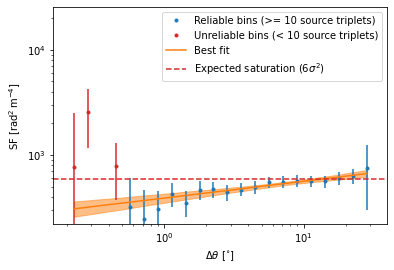

Finally, we extend to using mutli-point structure functions, as described by Seta et al. 2022 (10.1093/mnras/stac2972). Currently, only the triple-point structure function is implemented.
sf_result, result = structure_function(
data=np.array(mao_rm_tab['RM'][mao_rm_tab['included']]) * u.rad / u.m**2,
errors=np.array(mao_rm_tab['e_RM'][mao_rm_tab['included']]) * u.rad / u.m**2,
coords=mao_rm_tab['coordinates'][mao_rm_tab['included']],
samples=1000,
bins=bins,
show_plots=True,
verbose=True,
fit='bilby',
nlive=400,
sampler='nestle',
model_name='power_law',
n_point=3
)
2022-11-07 14:04:53.006 INFO structurefunction - structure_function: Sampling errors...
2022-11-07 14:04:55.827 INFO structurefunction - structure_function: Getting angular separations...
2022-11-07 14:04:55.888 INFO structurefunction - structure_function: Computing SF...
2022-11-07 14:05:06.528 INFO structurefunction - flush: Grouping triplets: 0%| | 0/23 [00:00<?, ?it/s]
2022-11-07 14:05:37.538 INFO structurefunction - flush: Grouping triplets: 4%|4 | 1/23 [00:31<11:22, 31.01s/it]
2022-11-07 14:05:44.894 INFO structurefunction - flush: Grouping triplets: 9%|8 | 2/23 [00:38<05:59, 17.10s/it]
2022-11-07 14:06:03.502 INFO structurefunction - flush: Grouping triplets: 13%|#3 | 3/23 [00:56<05:55, 17.79s/it]
2022-11-07 14:06:03.826 INFO structurefunction - flush: Grouping triplets: 17%|#7 | 4/23 [00:57<03:26, 10.89s/it]
2022-11-07 14:06:44.125 INFO structurefunction - flush: Grouping triplets: 26%|##6 | 6/23 [01:37<04:28, 15.80s/it]
2022-11-07 14:06:45.784 INFO structurefunction - flush: Grouping triplets: 30%|### | 7/23 [01:39<03:10, 11.92s/it]
2022-11-07 14:06:49.229 INFO structurefunction - flush: Grouping triplets: 35%|###4 | 8/23 [01:42<02:22, 9.53s/it]
2022-11-07 14:07:02.432 INFO structurefunction - flush: Grouping triplets: 39%|###9 | 9/23 [01:55<02:28, 10.58s/it]
2022-11-07 14:07:56.236 INFO structurefunction - flush: Grouping triplets: 43%|####3 | 10/23 [02:49<05:00, 23.15s/it]
2022-11-07 14:09:32.316 INFO structurefunction - flush: Grouping triplets: 48%|####7 | 11/23 [04:25<08:54, 44.56s/it]
2022-11-07 14:11:19.801 INFO structurefunction - flush: Grouping triplets: 52%|#####2 | 12/23 [06:13<11:34, 63.15s/it]
2022-11-07 14:13:00.834 INFO structurefunction - flush: Grouping triplets: 57%|#####6 | 13/23 [07:54<12:23, 74.39s/it]
2022-11-07 14:14:16.764 INFO structurefunction - flush: Grouping triplets: 61%|###### | 14/23 [09:10<11:13, 74.85s/it]
2022-11-07 14:14:17.652 INFO structurefunction - flush: Grouping triplets: 65%|######5 | 15/23 [09:11<07:02, 52.78s/it]
2022-11-07 14:14:17.804 INFO structurefunction - flush: Grouping triplets: 70%|######9 | 16/23 [09:11<04:19, 37.05s/it]
2022-11-07 14:14:34.125 INFO structurefunction - flush: Grouping triplets: 74%|#######3 | 17/23 [09:27<03:05, 30.85s/it]
2022-11-07 14:14:34.246 INFO structurefunction - flush: Grouping triplets: 83%|########2 | 19/23 [09:27<01:06, 16.66s/it]
2022-11-07 14:14:34.316 INFO structurefunction - flush: Grouping triplets: 100%|##########| 23/23 [09:27<00:00, 24.69s/it]
2022-11-07 14:15:03.879 WARNING structurefunction - sf_three_point: Correcting for errors in three point SF
2022-11-07 14:15:14.286 INFO structurefunction - fit_data: Fitting SF with a power law...
14:15 bilby INFO : Running for label 'power_law_3_point', output will be saved to 'outdir'
14:15 bilby INFO : Search parameters:
14:15 bilby INFO : amplitude = Uniform(minimum=-225.72103067916134, maximum=1232.513427467522, name='amplitude', latex_label='$a$', unit=None, boundary=None)
14:15 bilby INFO : x_break = Uniform(minimum=0.5660000000000001, maximum=28.371000000000002, name='x_break', latex_label='$\theta_\mathrm{break}$', unit=None, boundary=None)
14:15 bilby INFO : alpha = Uniform(minimum=-2, maximum=2, name='alpha', latex_label='$\alpha$', unit=None, boundary=None)
14:15 bilby INFO : Single likelihood evaluation took 9.887e-05 s
14:15 bilby WARNING : Supplied argument 'npool' not an argument of 'Nestle', removing.
14:15 bilby WARNING : Supplied argument 'sample' not an argument of 'Nestle', removing.
14:15 bilby INFO : Using sampler Nestle with kwargs {'method': 'multi', 'npoints': 400, 'update_interval': None, 'npdim': None, 'maxiter': None, 'maxcall': None, 'dlogz': None, 'decline_factor': None, 'rstate': None, 'callback': <function print_progress at 0x1b2e72550>, 'steps': 20, 'enlarge': 1.2}
[Kit= 2984 logz=-108.29771321747
14:15 bilby INFO : Sampling time: 0:00:07.572824
14:15 bilby INFO : Summary of results:
nsamples: 3385
ln_noise_evidence: nan
ln_evidence: -107.875 +/- 0.118
ln_bayes_factor: nan +/- 0.118
2022-11-07 14:15:22.691 INFO structurefunction - fit_data: Fitting results:
2022-11-07 14:15:22.692 INFO structurefunction - fit_data: amplitude: 590 ± 70
2022-11-07 14:15:22.693 INFO structurefunction - fit_data: x_break: 16 ± 9
2022-11-07 14:15:22.694 INFO structurefunction - fit_data: alpha: 0.16 ± 0.05
2022-11-07 14:15:22.694 INFO structurefunction - fit_data: Fit log evidence: -107.874896434051 ± 0.11839303208862947
